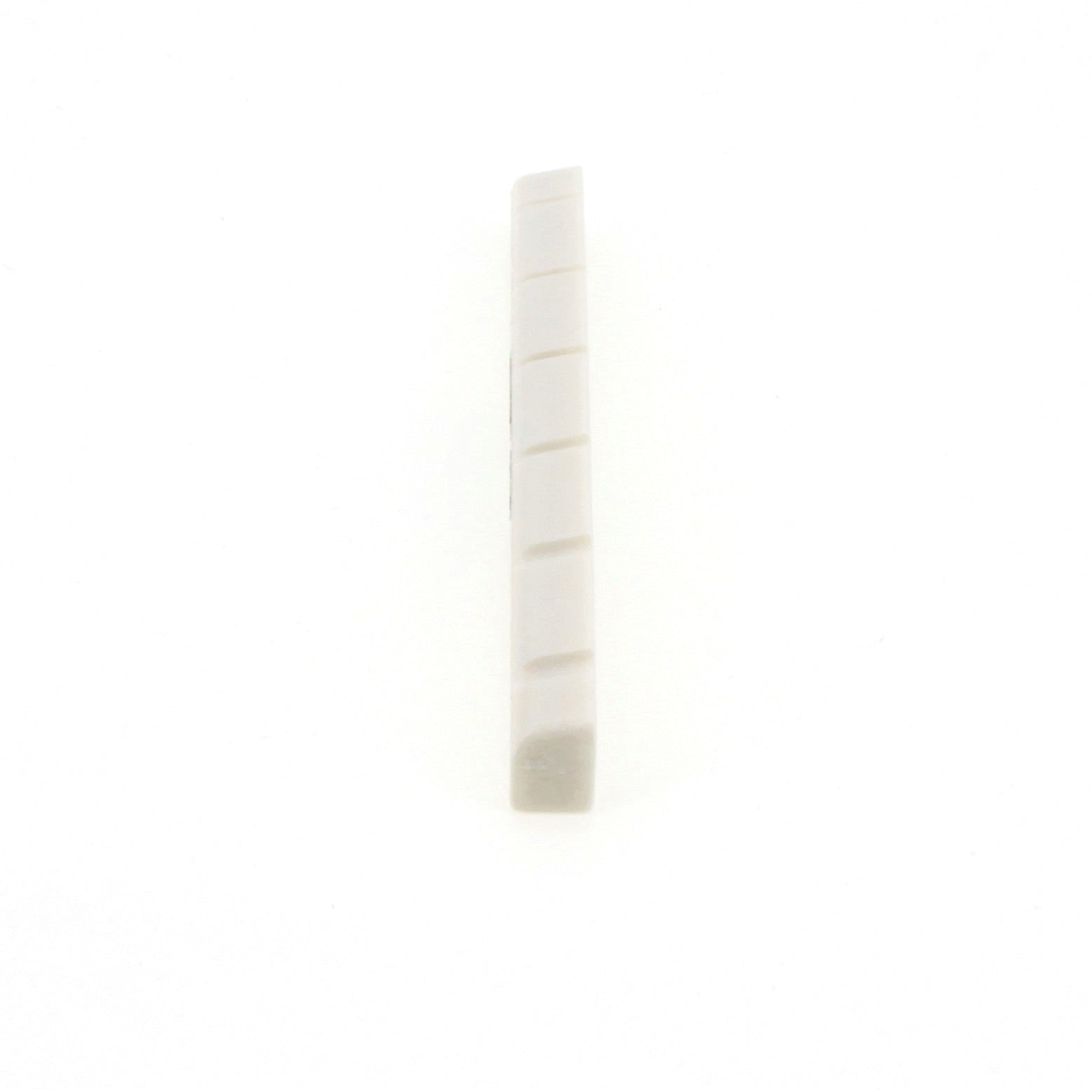

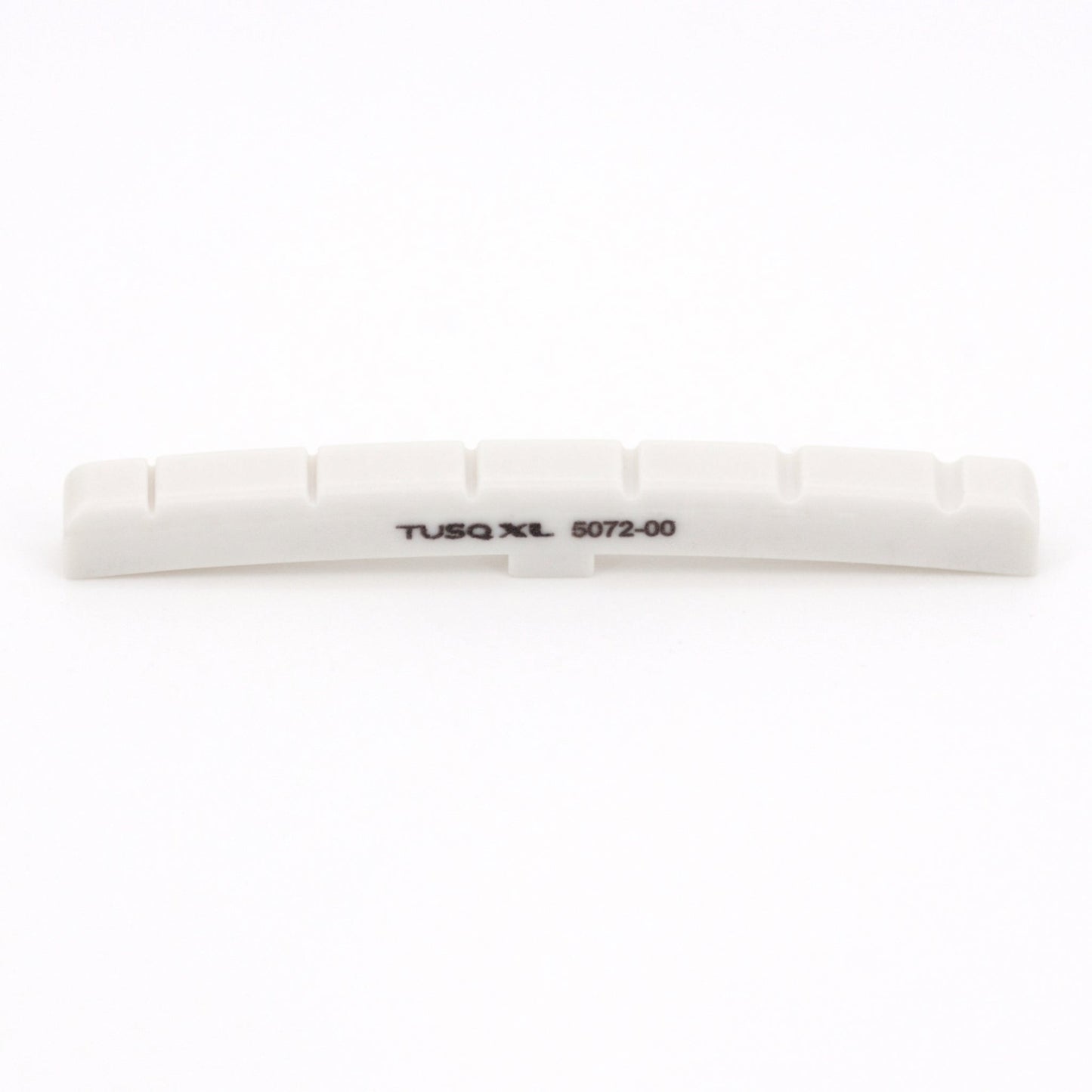

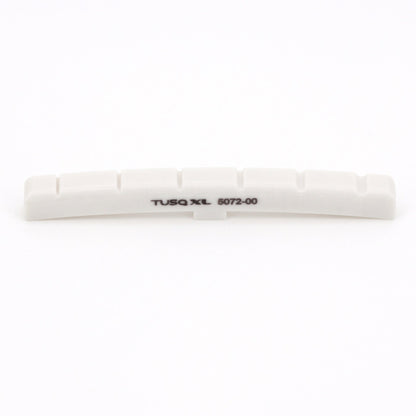

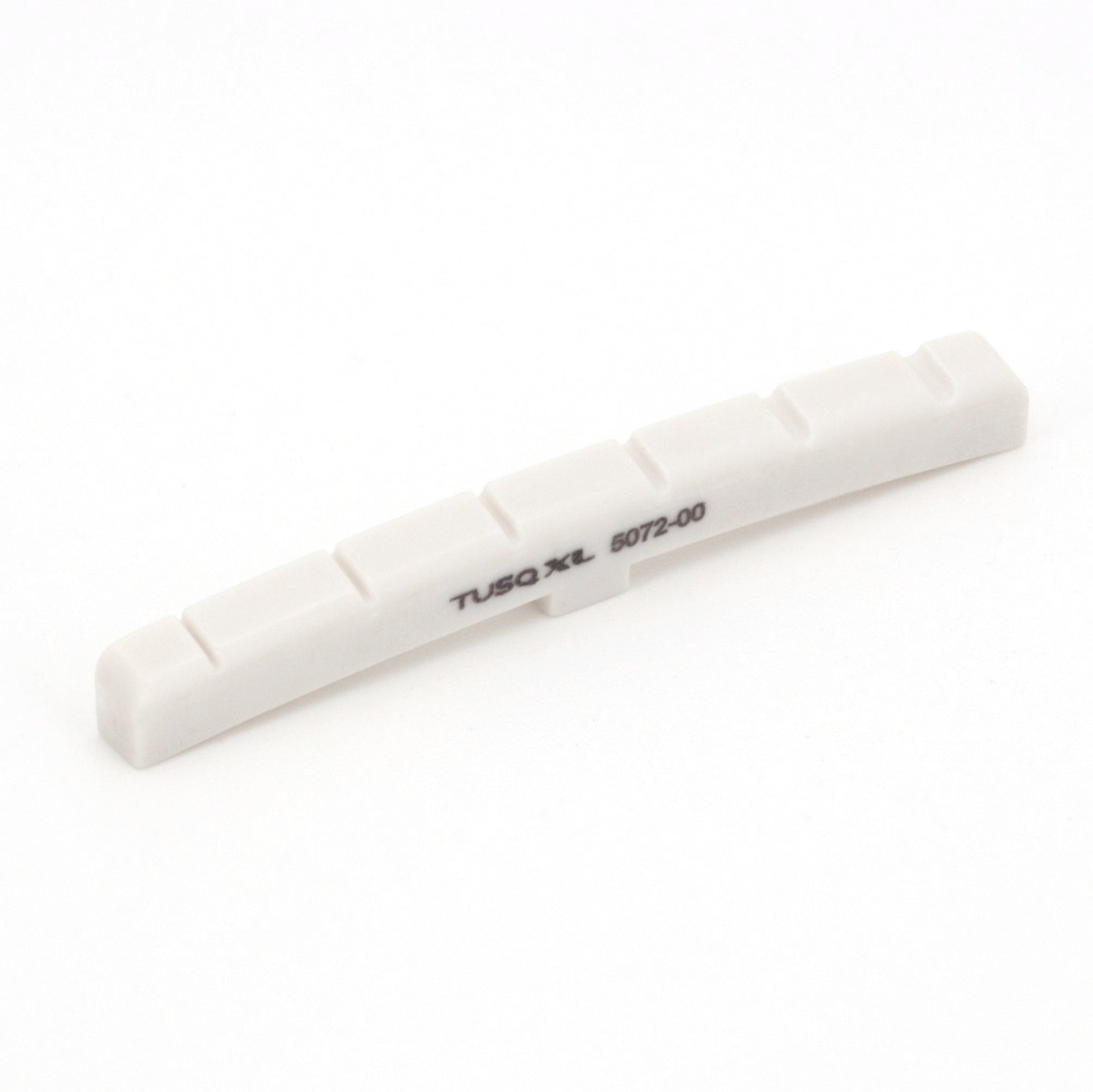

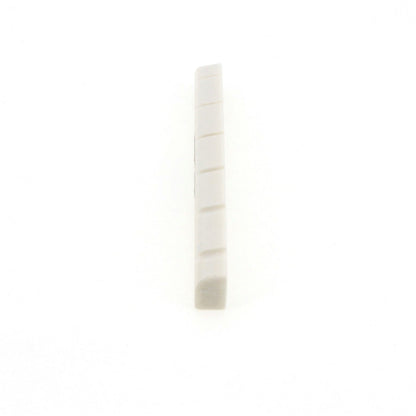

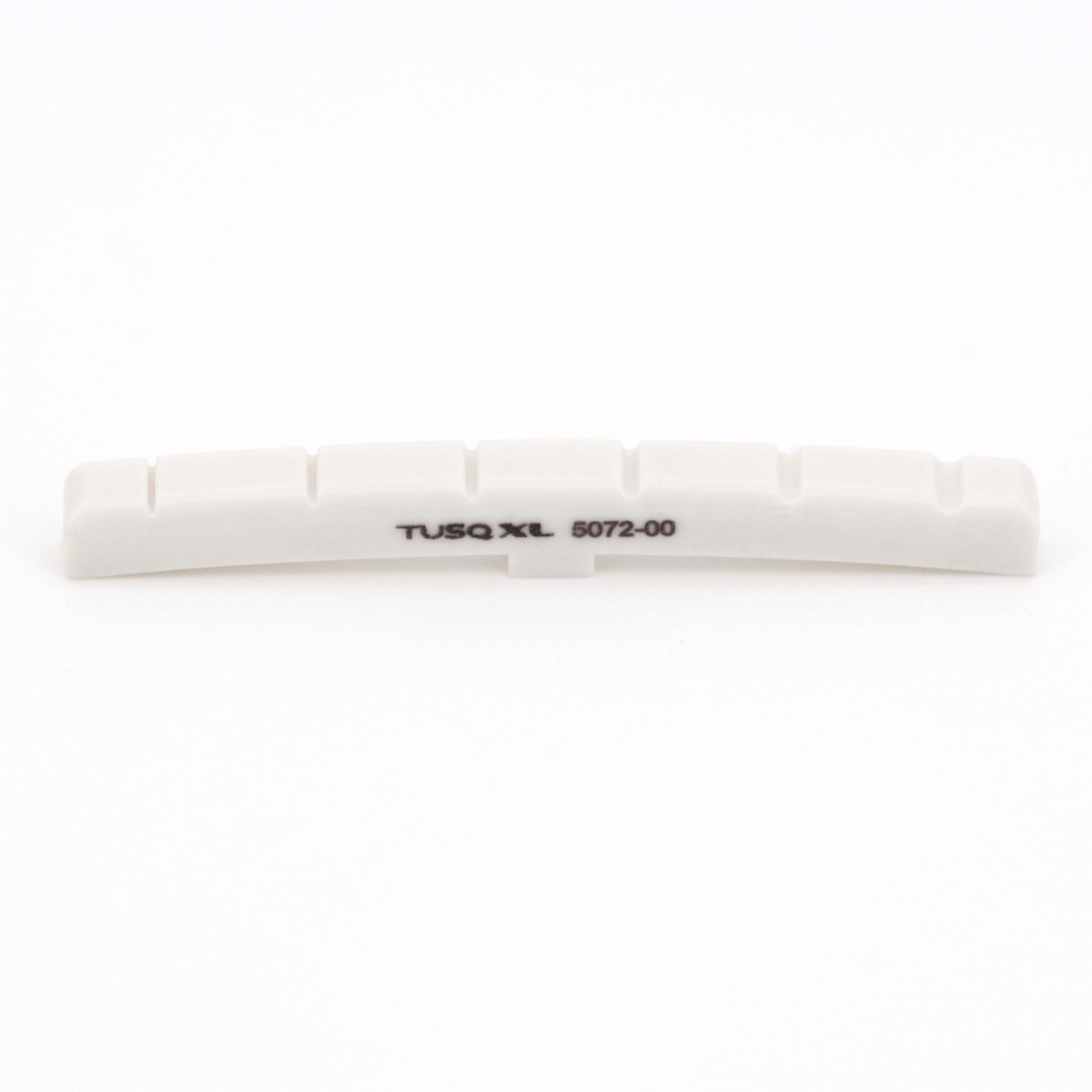

GraphTech TUSQ XL Slotted Nut 6 String 7.5" Radius

GraphTech TUSQ XL Slotted Nut 6 String 7.5" Radius

Regular price £13.49
Regular price Sale price £13.49
Sale Out of Stock
Tax included.

If you have a Fender® guitar or re-issue from the 1950's-60's or 70's, this is your nut!

A 7.25" radius, work with a curved or flat bottom and permanently lubricated for great tuning stability.  It works in both a flat bottom or curved bottom nut slot due to its ingenious design, just sand off the tab for a curved bottom.

It is pre-slotted to make for a quick and easy install.

For just about all Fender® electric guitars made in the 1950’s, 60’ and 70’s… that’s a lot!

The 7.25” fingerboard radius originated in the early 1950s and was used for most Fend® electric instruments until the 1980s. In the 80's it was changed to a slightly flatter 9.5" radius.

Length 43.18mm / 1.7"
Width 3.3mm / 0.13"
Height 5.41mm / 0.213"
E t0 E 35.31mm / 1.390"

TUSQ XL is designed to boost guitar tone and performance. This precision engineered nut is made with a specially formulated material which couples the strings' vibrations to the neck and brings out the hidden harmonics and richness in every note. It is based on the highly resonant TUSQ man made ivory, but is impregnated with PTFE to improve the tuning performance of the guitar.
